A New AP-6 CCD Camera for the Sproul 24-Inch Refractor
by
H.J. Augensen, Widener University
W.D. Heintz, Swarthmore College
M.R. Schultz, Widener University
Central Pennsylvania Consortium Astronomer's Meeting
Franklin & Marshall College
Saturday, 25 April 1998
I. Introduction – Past Research at Sproul Observatory
Brief History
-
1910 construction of refractor begins, from donation by State Senator
Sproul
-
1912 continuous operation of Sproul refractor begins in January
-
1966-7 refractor overhauled for 7 months, tracking & setting motors
installed, new electronic console
-
1998 Apogee AP-6 CCD camera attached to refractor, cables run to observing
alcove at dome entrance
24-inch Refractor
-
Specifications:
-
aperture 0.61 m
-
focal length 11 m
-
focal ratio f/18
-
favorable for precise measurement of positions & motions of stars
-
has advantage that instrument not much affected by background campus
& suburban lighting
Seeing Limitations
-
minimum seeing disk on photographic plates ~ 1.0¢
¢ (typical ~ 1.5¢
¢ )
-
minimum visual resolution ~ 0.1¢ ¢
(typical ~ 0.3¢ ¢
)
Limiting Magnitudes
-
practical limiting visual magnitude ~ 13
-
practical limiting photographic magnitude ~ 14
-
sky background magnitude ~ 15
Research Projects
-
photographic observations to determine distances of stars, especially
nearby faint dwarfs
-
micrometer observations of visual binary stars, their orbits & masses
Legacy of Past Projects
-
Sproul plate archive contains probably largest astrometric plate collection
from one telescope:
-
90,000 photographic plates since early 1900s:
-
used to make 1400 parallax (distance) determinations
-
Visual observations, mainly by W.D. Heintz since 1967:
-
500 binary star orbits
-
900 newly discovered binaries
-
study of low-mass binaries, including first "brown dwarf" candidates
(Wolf 424 in 1972)
-
Photographic program terminated in 1994
-
Micrometer observations terminated in 1998
II. The Apogee AP-6 Camera
-
reviewed in CCD Astronomy, Summer 1996 (then Axiom
AX-6)
-
very large chip yields workable field of view with f/18 refractor
Kodak KAF 1000 Chip
-
1024 x 1024 pixel array, 24.6 x 24.6 mm square
-
24 m square pixels
-
front-illuminated, no antiblooming
-
linear well depth 170Ke
-
dark count ~ 1.0 e/sec at -25°
C (doubles for every ~6° C warmer)
-
pixel binning 1x1 to 8x8
System Conversion & Misc Info
-
download > 45K pixels/sec, total frame 24 sec
-
readout noise < 24 e (19e typical)
-
system gain 3.5 e/ADU nominal
-
exposure time 0.03 sec to 10,400 sec
-
frame size full frame, subframe, focus mode
Cooling
-
thermoelectric cooler with forced air.
-
minimum 35° C below ambient
at 25° C (remote boost unit adds 5-8°
C cooling)
-
20 min temperature transition time for sensor safety
-
Software programmable temperature
Camera Head
-
8061-T6 aluminum body, hard blue anodized
-
BBAR coated silica windows
-
camera head is 6x6 in x 1.3 in thick (heat sinks & fans
add 1.2 in)
-
3 lbs
AP-6 Camera Mounted on 24-Inch
-
yields 8¢ x 8¢
field of view with 24-inch at f/18
-
pixel scale 0.45¢ ¢
per pixel at focal plane
-
16-bit images, each takes up ~ 2 Mb of space
Filter Wheel
-
constructed by ISI Systems, Santa Barbara, CA
-
contains eight, 2-inch square slots
-
standard B, V, R filters, 5 mm thick, from Omega Optical,
PMIS software
Computer
-
PowerSpec PC
-
233 MHz Pentium II processor
-
64 Mb RAM

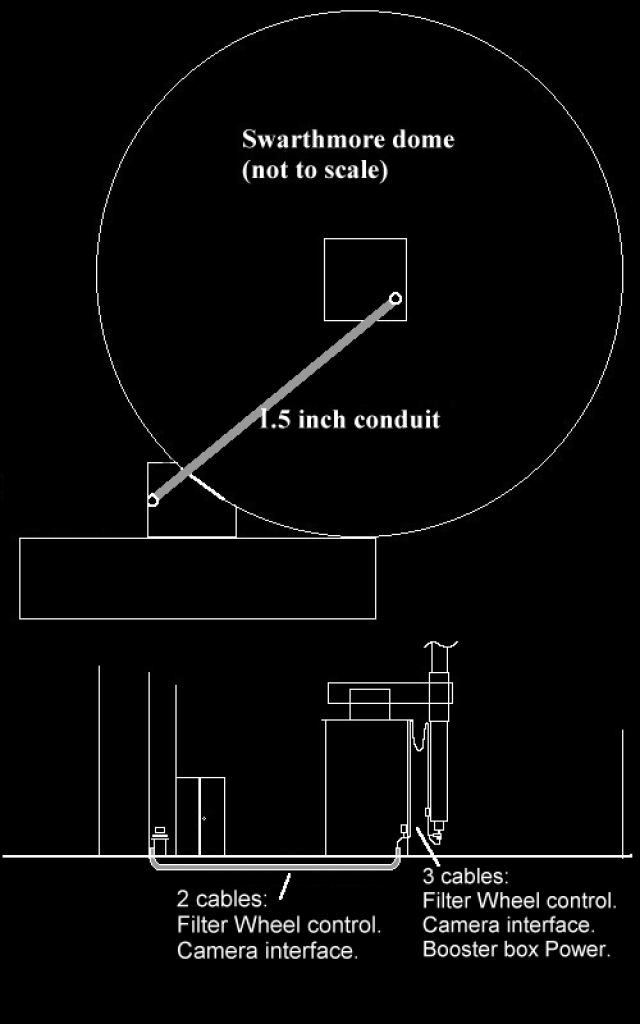

III. The New Layout & Observing Room (Alcove)
IV. Future Research Projects at Sproul
Short Period Variables
-
Delta Scuti Variables
-
SX Phoenicis Variables
-
Eclipsing Binaries – Algols & W UMa
Long Period & Unusual Variables
-
Extragalactic Supernovae
-
RV Tauri and Semiregular Variables
-
Possible Identification of Flare Stars
Images
Taken
(Web Page)
http://www.science.widener.edu/~schultz/sproul.html
